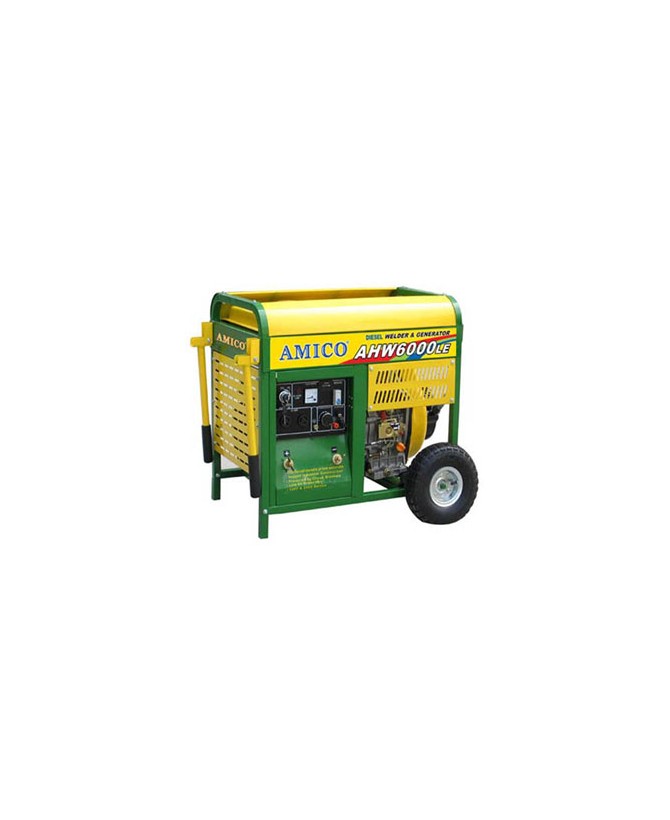

6000W DIESEL WELDER AND GENERATOR
Model AHW6000LE
Frequency 60Hz
Voltage (AC) 120V/240V
Rated AC Power 6000W
Max. AC Power 6500W
DC Output 12V/8.3A
No-load Vp;tage(DC) 50V
Cont.Current (DC) 180A
Cont.Ra
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
(edit with the Customer Reassurance module)
Model AHW6000LE
Frequency 60Hz
Voltage (AC) 120V/240V
Rated AC Power 6000W
Max. AC Power 6500W
DC Output 12V/8.3A
No-load Vp;tage(DC) 50V
Cont.Current (DC) 180A
Cont.Rated Voltage (DC) 25V-35V
Continuous load Rate 60%
Continuous Load Rate 80A-210A
Engine Speed 3600rpm
Power Factor 1.0(cosφ)
Starting Mode Electric Start & Recoil Start
Net Weight 256 lbs / 116 kg
Dimensions (L×W×H) 700mm×500mm×620mm
Engine Model AH186F(E)
Type Single-cylinder, Vertical, 4-Stroke, Direct injection,
Air-cooled Diesel Engine
Continuous Output 10.0HP
Bore × Stroke 86mm × 72mm
Displacement 418cc
Protection System Low Oil, Warning System / Stop Device
Noise Level 72 db(A) at 7 meters
Fuel Tank Capacity 3.3 Gallon / 12.5 Liter
Lube-oil Capacity 1.6 Liter
Crankshaft Direction Clockwise from flywheel end
Cooling Type Force air-cooled
